AI anti-collision management of factory vehicles

·Perception of pedestrians in a certain range around forklift based on camera

·When a pedestrian enters the early warning range, an alarm signal is triggered.

·When pedestrians leave the warning range for 3 seconds, stop the alarm.

·The visual display screen can observe the detection result picture in real time.

▊Related parameters

examination area	Left/rear/right radius 2m range
Equipment voltage	12V

▊Erection mode

serial number	picture	explain
one		The power supply of the computing equipment is connected to the forklift power supply and fixed at the top of the forklift cab.
twotwo		The three cameras are respectively fixed on the left top sidebar, the rear top sidebar and the right top sidebar of the forklift, and the irradiation direction is about 45 degrees obliquely downward (corresponding brackets need to be designed due to the different installation positions of the forklift), and they are connected to the AHD-8 (corresponding to the right camera), AHD-7 (corresponding to the rear camera) and AHD-6 interface (corresponding to the left camera) of the mainframe through extension cables.
three		The word width indicator lights are respectively fixed on the left side top sidebar, the rear side top sidebar and the right side top sidebar of the forklift, and the irradiation direction is about 45 degrees obliquely downward (the camera is installed up and down, so that the camera's field of vision will not be affected during installation, and the light irradiated by the lights should be equal to the safe distance from the edge of the forklift). When it is connected to the forklift power supply, it needs long light (12-60V wide voltage, voltage automatic conversion).

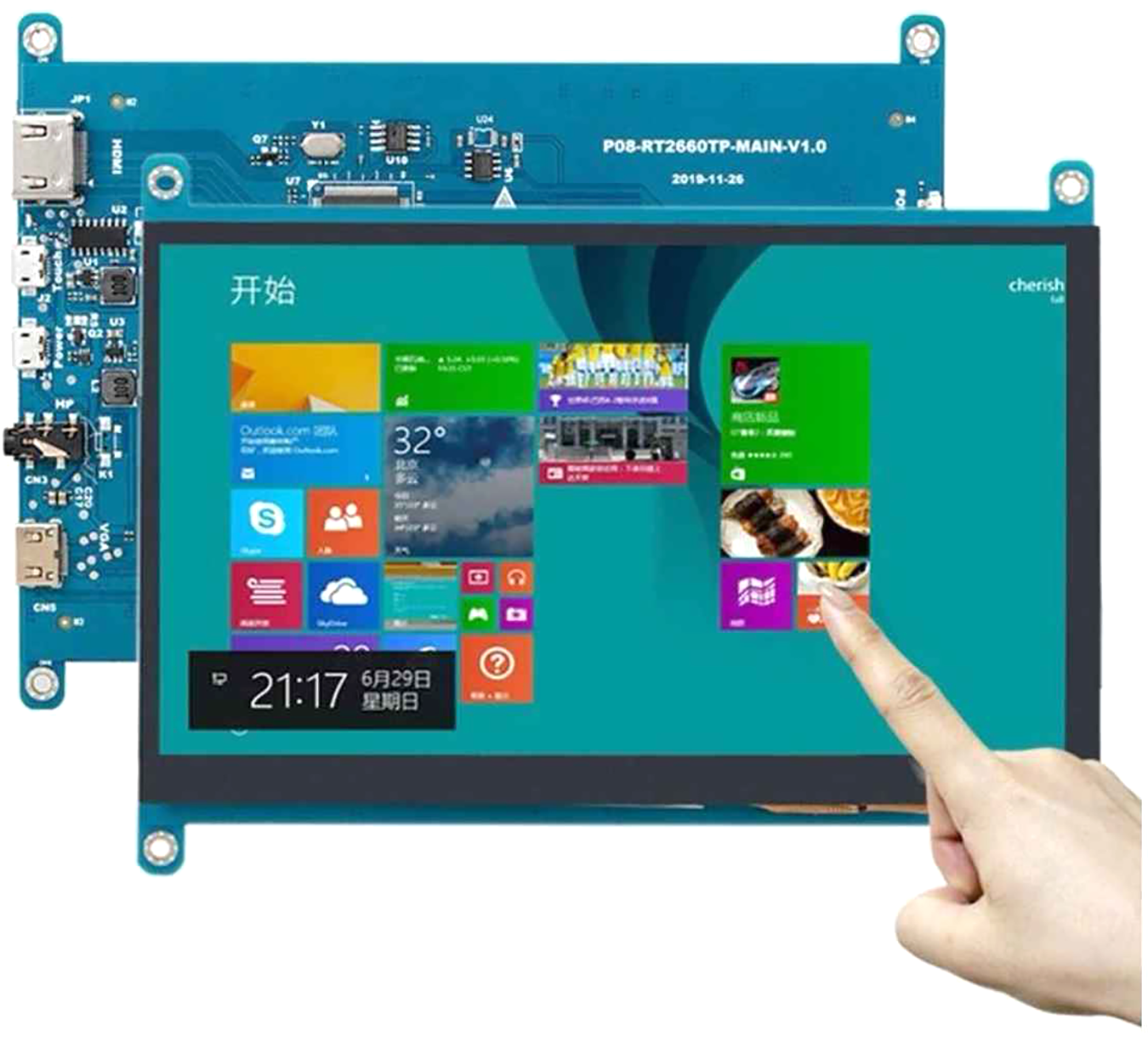

four		The display screen is installed on the right side of the steering wheel (accessed through HDMI cable and typec).
five		The alarm lamp is installed at the top of the cab and connected to the 12V and GND interfaces of the host computer by the terminal.

▊Use and function

Turn it on and use it.

·When pedestrians enter the alarm area, the alarm light will light up.

·When pedestrians leave the danger zone for 3 seconds, the warning light goes out.

function

·Identify whether it is within 2m, and give an alarm-achieved.

·Personnel authorized to start the forklift.

·Overspeed detection and alarm.

▊Troubleshooting

Abnormal situation and possibility

·Running Caton: It may be that the machine has been running for too long, so restart the machine.

·Abnormal distance alarm: whether the camera is fixed and stable, if it is unstable, it needs to be fixed, and the camera posture is calibrated, and then the machine is restarted.

·Alarm light is not on: check whether the interface is stable and whether the light function is normal.

▊bill of materials

·Host x1 8+64G version

·Ahd camera x3 (provided by vehicle camera supplier)

·AHD Aviation (4-core) Connector Extension Line (2m or 3m, depending on actual demand)

·Display x1 (10.1 inch 1280*800IPS+touch (note: touch function depends on customer's needs))

·Hdmi cable x1 (length depends on actual demand)

·Word lamp

·Warning light x1 (red stroboscopic silent 12 (note: whether there is sound or not depends on customer's demand)
