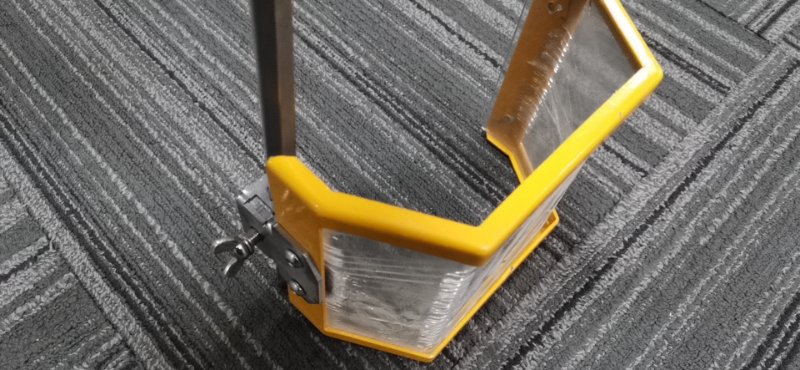

Milling machine protection
| · Customized patent protection device · Multiple micro switches control the direction of the protective cover switch · Large window for easy viewing of processing quality Comply with (GB/T 16855.1-1997) Class 1 or Class 3 stop requirements; comply with the relevant regulations and requir ements of GB5226.1-2002 10.7, and GB 16754; · The safety control system meets the SIL3 safety level: safety products are preventive protection measures, are active protection measures, and accept custom-made special sizes. |
Milling machine protection selection
Product name | AG61-CG40 | AG61-CG50 | Security door lock | Safety control system |
Dimensions | A:454 B:450 C:500 D:200 | A:504 B552 C:580 D:220 | √ | √ |
Explanation |
Product technical description
· Control of access to the hazardous area The design and positioning of the protective cover of the movable lathe should be such that it can prevent the protective cover from closing when there are people left in the hazardous area during normal operation. If this is not feasible, other measures should be taken to prevent the detection of persons in the danger zone. See GB/T 15706-2012, 6.3.3.2.3. |
|
| · Safety chain (conforming to ISO 14119) Safety door locks that meet international safety requirements. Confirm safety and security through a third-party certification body. · Conforms to: ANSI B11.13, ISO 13849 · This protective cover has Chinese national patent · Easy to install (including installation guide) · Including one year of non-artificial maintenance |

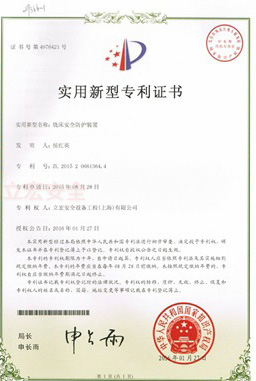

Product patent
· Product patent number: ZL 2014 2 0692706.4 · Safety design considerations The design of the milling machine protective cover should properly consider the operation of the machine for the foreseeable full life cycle and the predictable machine environment Factors, poor consideration can lead to dangerous conditions that hinder the operation of the machine, which in turn leads to the protective cover provided Was artificially abandoned, thereby exposing the operator to greater risks. Foreseeable aspects of existing operating shields All are properly considered in the design stage to ensure that the design and manufacture of the protective cover itself does not create new dangers. |
|
Milling machine safety circuit module

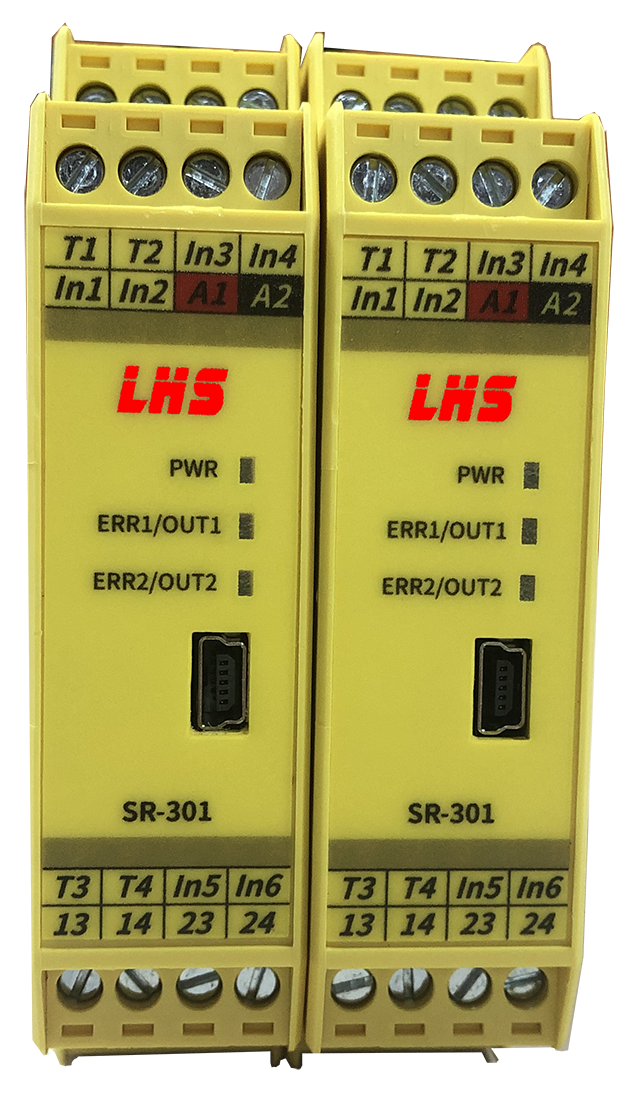

| SR301 safety relay
Multiple safety product component inputs
· Built-in self-diagnosis function to detect faults · Optional manual/automatic reset |

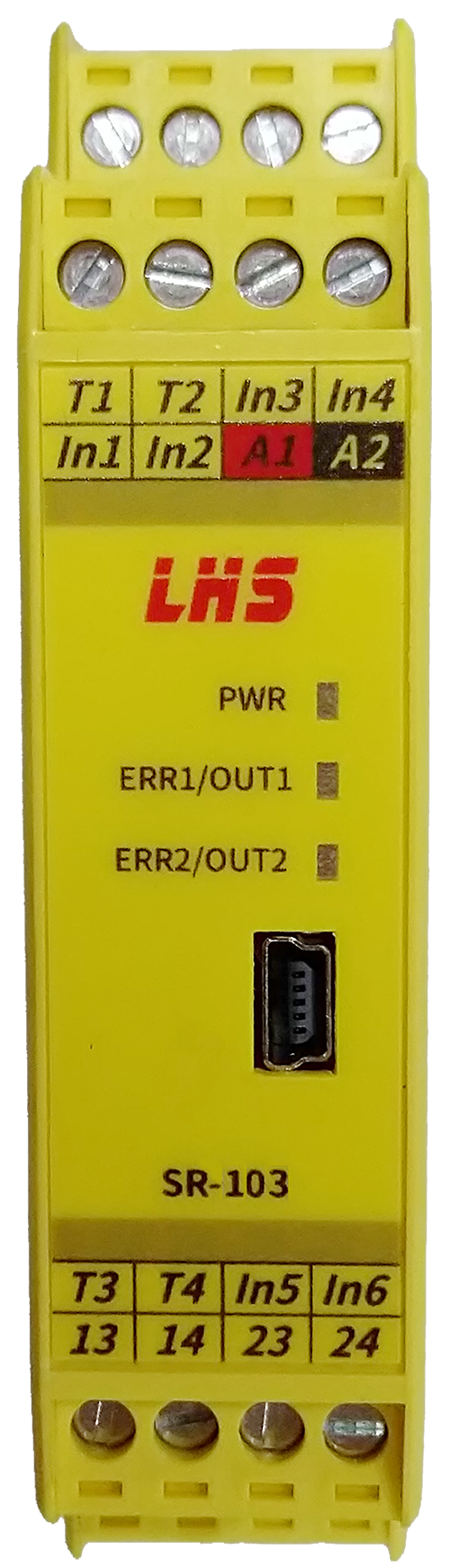

| SR 103 safety controller
? Built-in self-diagnosis function to detect faults ? Can choose automatic reset or manual reset ? The terminal block is a finger safety protection structure ? Obtained TüV Rheinland certification |
