 | New generation of robots enter the area safety inspection light curtain, which can be divided into three areas to improve production efficiency |
product name | Product number | protected area | Protection length | Order number |
Area detection safety light curtain | DM-R-2-3 | 3 zones: alarm zone (observation zone), deceleration zone (debug zone), stop zone (danger zone) | safe distance | Dm-R-2-3 |
Area detection safety light curtain | DM-R-2-6 | 3 zones alarm zone (observation zone) deceleration zone (modulation zone) stop zone (danger zone) | Calculation shall prevail | DM-R-2-6 |
Explanation | ||||
| Technical performance |
 | Programmability: each beam is independently programmed, and the 6-points can be monitored by the Goldenest Program: continuous monitoring of each beam to detect whether there are objects in the protection field. When a detected object is sent, a safety signal is sent to save costs: according to processing The environment sets the detection distance of the light curtain light spot, which saves costs and can effectively protect personnel from 10mm detection fingers to 100mm detection human dream eaters. Most can be customized and partitioned: the same set of safety light curtains, different resolutions in different sections, and equipment No protected area safety certification |
Security Level |
? Type 2 - IEC 61496-1-2 ? Category 2 - ISO/EN 13849-1 ? PL d - ISO/EN 13849-1 ? SIL 2 - IEC 61508 ? SIL CL 2 - IEC 62601 type2 |
| Technical data |
Supply voltage | 24VDC +/- 5VDC |
Current consumption Tx,Rx (without load) | < 10 mA at 30 VDC |
Output | PNP (NPN Optional ） |
Max. output current | 50 mA |
Max. capacitive load | 100 nF |
Temperature range operation | -40 … +60°C |
Polarity protection | Yes |
Enclosure rating | IP65 |
Max. ambient light | 100,000 Lux |
Certificates CE批準中 | CE Approving |
| Safety circuit |
| Programming according to the input and output of the safety light curtain The input and output mode can be customized to program up to 6 beam spots 1-2 beam is the alarm zone 2-4 beam is the deceleration zone 4-6 beam stop zone |

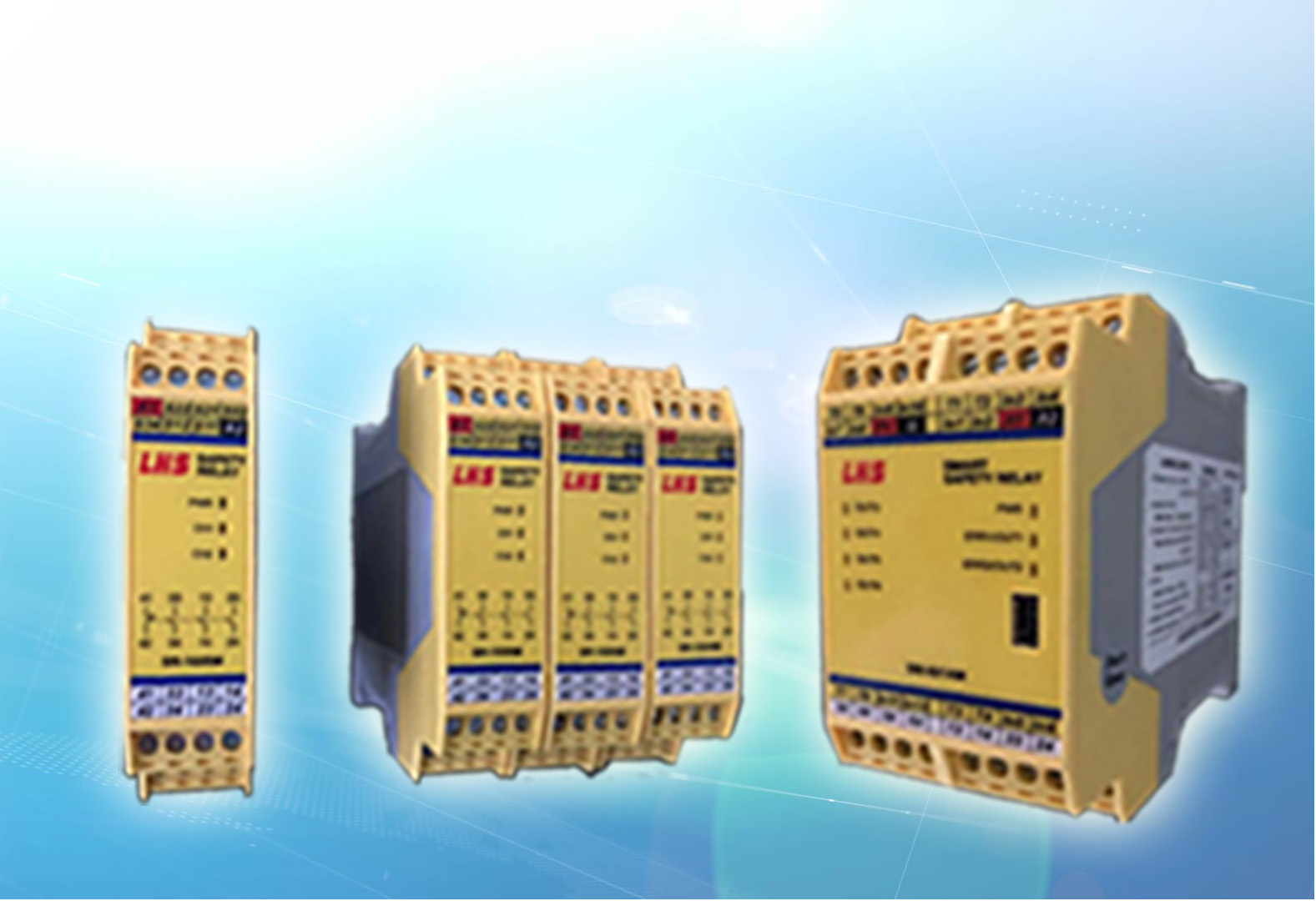

Connection method using Lihong LHS safety module |

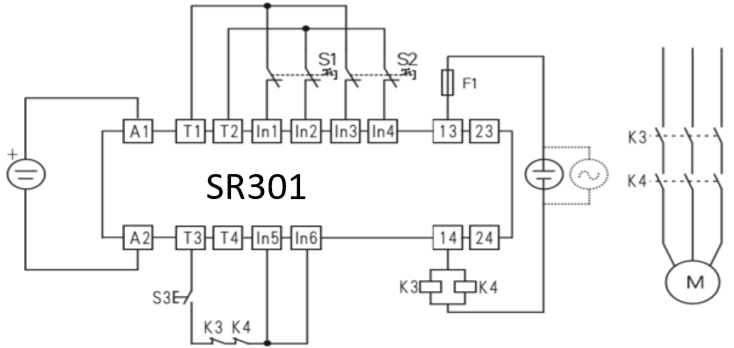

| The input and output information of SR301 series safety controllers can be selected and can be customized to control three groups of safety light spot signals at the same time. |
| SR601 series safety controller Can simultaneously receive 6 groups of safe light spot signals Input and output mode can be customized input: six groups of safety light spot signals for logic programming Combine according to the scene |
