| ·All structural appearance, strong, safe and resistant. ·Multi-function: it has the functions of mechanism locking and monitoring at the same time ·Multiple coding modes: only coding and general coding are optional. ·Single redundancy and double output: preventing potential safety hazards caused by single loop failure. ·Cascade connection of switches can reduce the number of transmission points. ·Skillful appearance: the cutting length is ?30mm*30mm. ·Flexible installation: it can be directly installed on an aluminum frame not exceeding 30 mm. |
▊ | Product selection table |
Locking mode | Configuration type | Coding type | Output mode | Lead mode | Cable length | model |
mechanical caging | normalized form | universal coding | NPN | Direct outlet | 3M | D3SL-E-JB-2N-Z3 |
5M | D3SL-E-JB-2N-Z5 | |||||
10M | D3SL-E-JB-2N-Z10 | |||||
M12 connector | / | D3SL-E-JB-2N-M12 | ||||
PNP | Direct outlet | 3M | D3SL-E-JB-2P-Z3 | |||
5M | D3SL-E-JB-2P-Z5 | |||||
10M | D3SL-E-JB-2P-Z10 | |||||
M12 connector | / | D3SL-E-JB-2P-M12 | ||||
Unique coding | NPN | Direct outlet | 3M | D3SL-E-JB-1N-Z3 | ||
5M | D3SL-E-JB-1N-Z5 | |||||
10M | D3SL-E-JB-1N-Z10 | |||||
M12 connector | / | D3SL-E-JB-1N-M12 | ||||
PNP | Direct outlet | 3M | D3SL-E-JB-1P-Z3 | |||
5M | D3SL-E-JB-1P-Z5 | |||||
10M | D3SL-E-JB-1P-Z10 | |||||
M12 connector | / | D3SL-E-JB-1P-M12 | ||||
mechanical caging | high function | universal coding | NPN | Direct outlet | 3M | D3SL-E-JG-2N-Z3 |
5M | D3SL-E-JG-2N-Z5 | |||||
10M | D3SL-E-JG-2N-Z10 | |||||
M12 connector | / | D3SL-E-JG-2N-M12 | ||||
PNP | Direct outlet | 3M | D3SL-E-JG-2P-Z3 | |||
5M | D3SL-E-JG-2P-Z3 | |||||
10M | D3SL-E-JG-2P-Z1 | |||||
M12 connector | / | D3SL-E-JG-2P-M12 | ||||
Unique coding | NPN | Direct outlet | 3M | D3SL-E-JG-1N-Z3 | ||
5M | D3SL-E-JG-1N-Z5 | |||||
10M | D3SL-E-JG-1N-Z1 | |||||
M12 connector | / | D3SL-E-JG-1N-M12 | ||||
PNP | Direct outlet | 3M | D3SL-E-JG-1P-Z3 | |||
5M | D3SL-E-JG-1P-Z5 | |||||
10M | D3SL-E-JG-1P-Z1 | |||||
M12 connector | / | D3SL-E-JG-1P-M12 | ||||
Electromagnetic locking | normalized form | universal coding | NPN | Direct outlet | 3M | D3SL-E-DB-2N-Z3 |
5M | D3SL-E-DB-2N-Z5 | |||||
10M | D3SL-E-DB-2N-Z10 | |||||
M12 connector | / | D3SL-E-DB-2N-M12 | ||||
PNP | Direct outlet | 3M | D3SL-E-DB-2P-Z3 | |||
5M | D3SL-E-DB-2P-Z5 | |||||
10M | D3SL-E-DB-2P-Z10 | |||||
M12 connector | / | D3SL-E-DB-2P-M12 | ||||
Unique coding | NPN | Direct outlet | 3M | D3SL-E-DB-1N-Z3 | ||
5M | D3SL-E-DB-1N-Z5 | |||||
10M | D3SL-E-DB-1N-Z10 | |||||
M12 connector | / | D3SL-E-DB-1N-M12 | ||||
PNP | Direct outlet | 3M | D3SL-E-DB-1P-Z3 | |||
5M | D3SL-E-DB-1P-Z5 | |||||
10M | D3SL-E-DB-1P-Z10 | |||||
M12 connector | / | D3SL-E-DB-1P-M12 | ||||
Electromagnetic locking | high function | universal coding | NPN | Direct outlet | 3M | D3SL-E-DG-2N-Z3 |
5M | D3SL-E-DG-2N-Z5 | |||||
10M | D3SL-E-DG-2N-Z1 | |||||
| M12 connector | / | D3SL-E-DG-2N-M12 | ||||
| PNP | Direct outlet | 3M | D3SL-E-DG-2P-Z3 | |||
5M | D3SL-E-DG-2P-Z5 | |||||
10M | D3SL-E-DG-2P-Z10 | |||||
| M12 connector | / | D3SL-E-DG-2P-M12 | ||||
| Unique coding | NPN | Direct outlet | 3M | D3SL-E-DG-1N-Z3 | ||
5M | D3SL-E-DG-1N-Z5 | |||||
10M | D3SL-E-DG-1N-Z10 | |||||
| M12 connector | / | D3SL-E-DG-1N-M12 | ||||
| PNP | Direct outlet | 3M | D3SL-E-DG-1P-Z3 | |||
5M | D3SL-E-DG-1P-Z5 | |||||
10M | D3SL-E-DG-1P-Z10 | |||||
| M12 connector | / | D3SL-E-DG-1P-M12 |
▊ | Model description |
 |
▊Fitting selection
category | Product chart | name of an article | model |
Actuator |  | Pass code actuator | DF-K2 |
Code-only actuator | DF-K1 | ||
Mounting frame |  | Rotating shaft mounting frame (Hinged and closed type suitable for opening to the left) | D3SL-E-ZJ-JL-L |
 | Rotating shaft mounting frame (Hinged and closed type suitable for opening to the right) | D3SL-E-ZJ-JL-R | |
 | Sliding mounting frame (Push-pull type suitable for opening to the left) | D3SL-E-ZJ-TL-L | |
 | Sliding mounting frame (Push-pull type suitable for opening to the right) | D3SL-E-ZJ-TL-R | |
M12 connecting line |  | Standard cable (8 pins) | D3SL-E-XL-P8C3 |
D3SL-E-XL-P8C5 | |||
D3SL-E-XL-P8C10 | |||
Functional cable (12 pins) | D3SL-E-XL-P12C3 | ||
D3SL-E-XL-P12C5 | |||
D3SL-E-XL-P12C10 |
▊ | Safety latch |
| RFID electromagnetic lock+safety latch |
|
|
▊ | technical parameter |
standard | ISO13849-1(Category 4/PLe);IEC/EN60947-5-3 | |
authentication | CE | |
Locking mode | Electromagnetic locking/mechanical locking | |
Safe output | NPN*2/PNP*2 | |
Response time | Lock → Unlock | 100ms(獨立工作) |
Unlock → Lock | ||
鎖定 | Locking retention force Fzh | ≥2000N |
Latch insertion deviation | ≤2mm | |
Mechanical durability | >1 million times (door operation speed 1m/s) | |
Operating frequency | 1Hz | |
Minimum service radius of revolving door | ≥220mm | |
Manual unlocking | Front and back | |
Cascade connection | Up to 20 sets | |
Control output (OSSD Output) | Output type | Transistor output ×2 |
Maximum load current | ≤200mA | |
Residual voltage (ON) | <2.5V@200mA | |
OFF voltage | ≤2V@線纜5m | |
leakage current | ≤0.5mA | |
Maximum load capacity | 2.2uF | |
Load connection resistance | ≤2.5Ω | |
AUX Output (non-secure output) | Output type | Transistor output |
Output quantity | 1 | |
Maximum load current | 50mA | |
Residual voltage (ON) | ≤2.5V@50mA | |
External transmission (Open circuit current) | Safety input | 1.5mA*2 |
Reset /EDM input | 約10mA*1 | |
Lock control input | 約10mA*1 | |
Power Supply | Working voltage | DC24V±15% |
rated power | 4.6W（空載） | |
protect | Safety circuit breaker protection, current limiting, overload protection, overvoltage protection, overheating protection stop and restart, reverse polarity protection, transient noise protection and failure pulse protection. | |
Environmental resistance patience | Enclosure protection grade | IP65 |
Action ambient temperature | -20℃~55℃(No freeze) | |
Storage ambient temperature | -25℃~70℃(No freeze) | |
Humidity of action environment | 5%~95%RH | |
Storage environment humidity | 5%~95%RH | |
Vibration resistance | 10至55Hz、雙振幅2.0mm、X、Y、Z各方向5分鐘（IEC60947-5-3） | |
shockproof | 30g X、Y、Z各?向6次（IEC60947-5-3） | |
Risk time | 100ms | |
start time | 3.5s | |
texture of wood | Nylon/zinc alloy/stainless steel | |
▊Indicator light description
 | Indicator name | Lighting color | State description |
Output indicator lamp | Red and green | 1.OSSD output: green 2.OSSD off: red 3.OSSD error: red flashing (2Hz) 4.EDM error: red flashing (1Hz) | |
Input indicator light | yellow | 1. Normal input: lit 2. Lose (waiting to lose): put out. 3. Wait for RSET reset: 1Hz flashing. | |
Lock indicator light | green | 1. Locking: Lighting 2. Abnormal locking: 2Hz flashing (electromagnet error, optocoupler error) 3. RFID: 1 Hz flashing 4. Unlocked: Off | |
Status indicator lamp | Red and green | 1. Lock and output: green light 2. Output: red light 3. Voltage error: the red light flashes for 2Hz. 4. Internal fault detection error: the red light flashes at 1Hz. 5. Error in checking internal data: the green light flashes at 1Hz. |

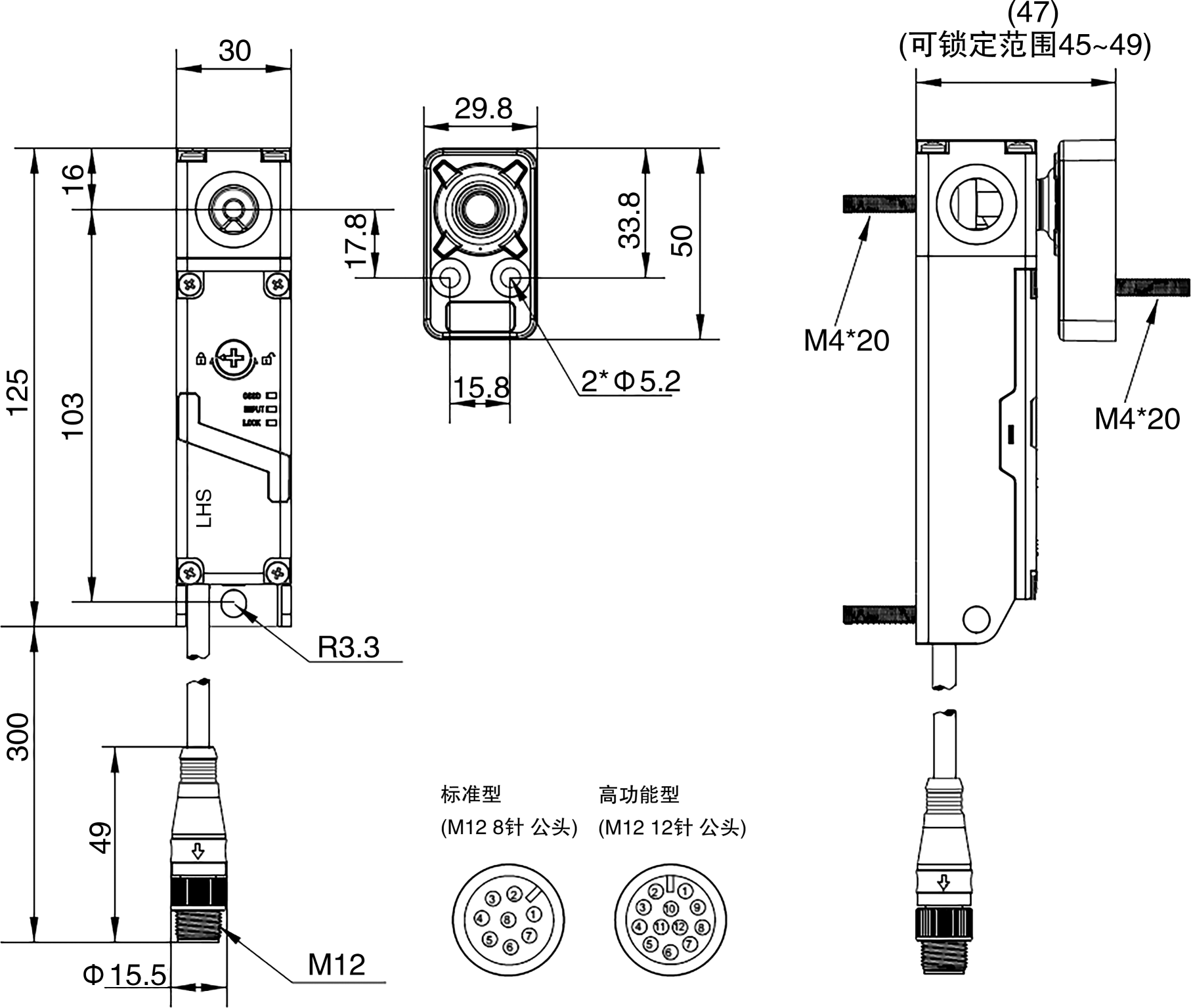

▊Product dimension diagram
|  |

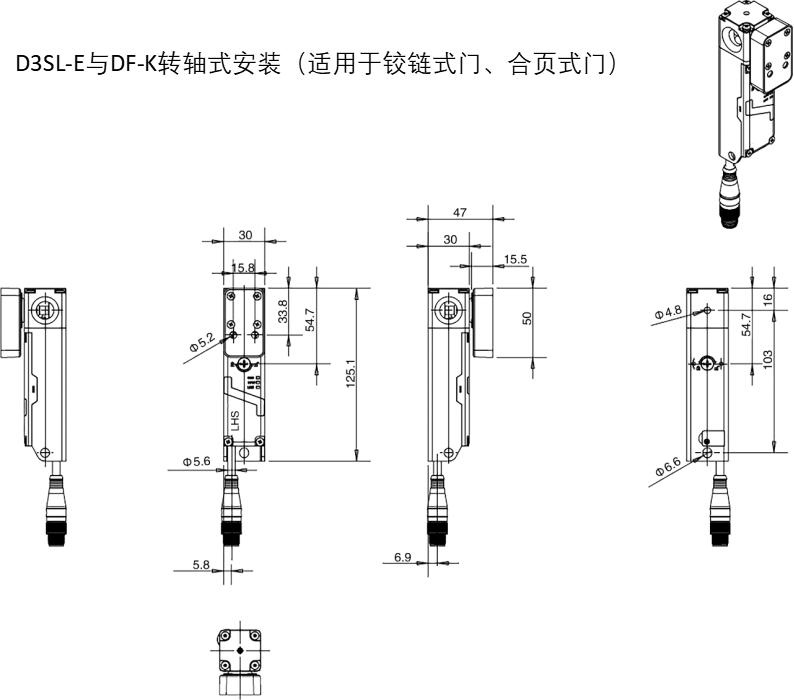

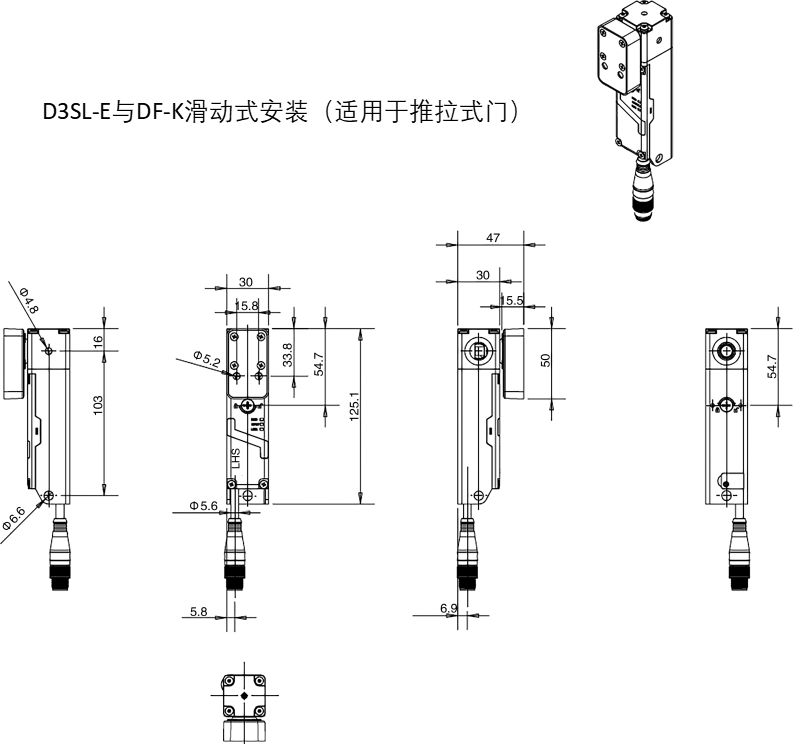

▊Installation diagram
 |  |
Slide the mounting bracket D3SL-E-ZJ-TL-R (open to the right) Sliding installation of D3SL-E and DF-K | Slide mounting frame D3SL-E-ZJ-TL-L (open to the left) Sliding installation of D3SL-E and DF-K |
 |  |
▊ | hookup |
Standard type (NPN, no cascade) | Standard (PNP, no cascade) |
 | |
Standard type (NPN, cascade) | |
 | |
Standard type (NPN, cascade) | |
 | |
Advanced type (NPN, no cascade) | High functional type (PNP, no cascade) |
 | |
High functional type (NPN, cascade) | |
 | |
High functional type (PNP, cascade) | |
 | |
Lihong Safety Equipment Engineering (Shanghai) Co., Ltd.
E-Mail: info@lh-safety.com
Address: 581 Xiuchuan Road, Chuansha Town, Pudong New District, Shanghai
(Greenland East Coast International Plaza-Room A 313)
Copyright ? Lihong Safety Equipment Engineering (Shanghai) Co., Ltd. ICP19034341-1 Technical Support: lanjujing

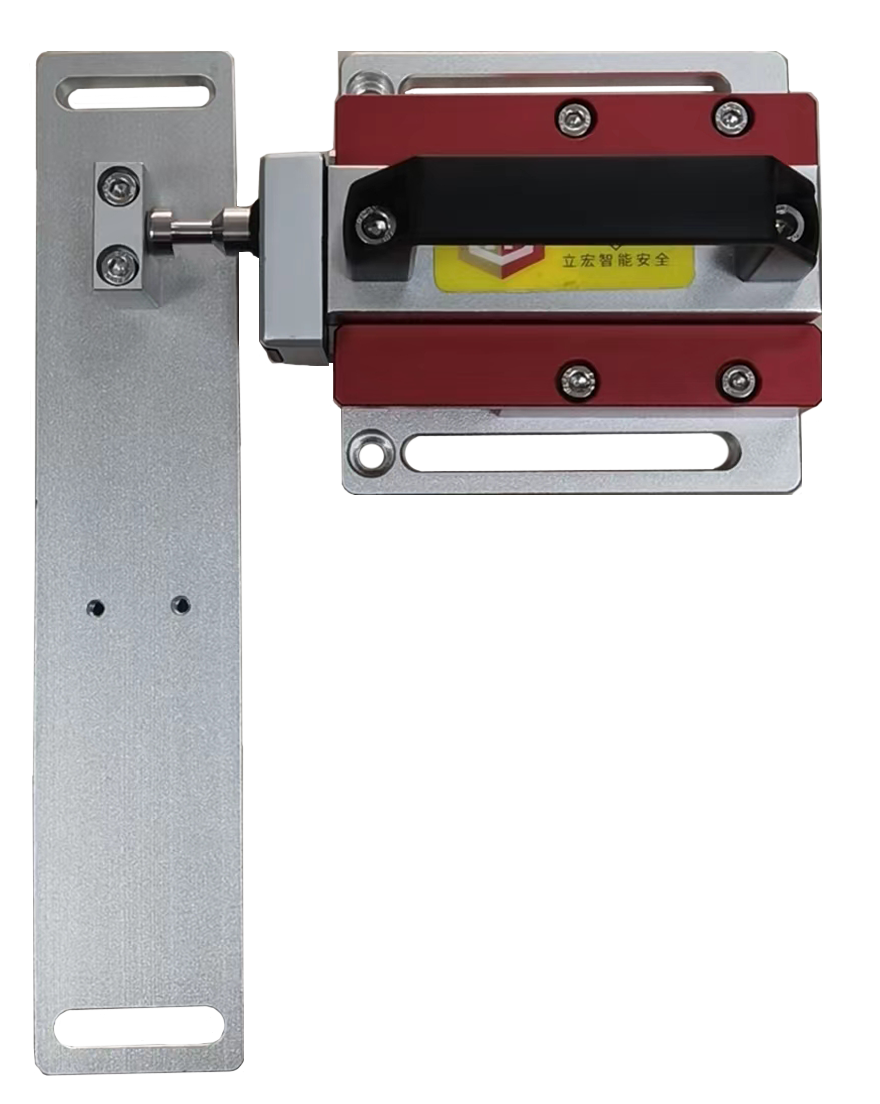

Safety latch BS06
