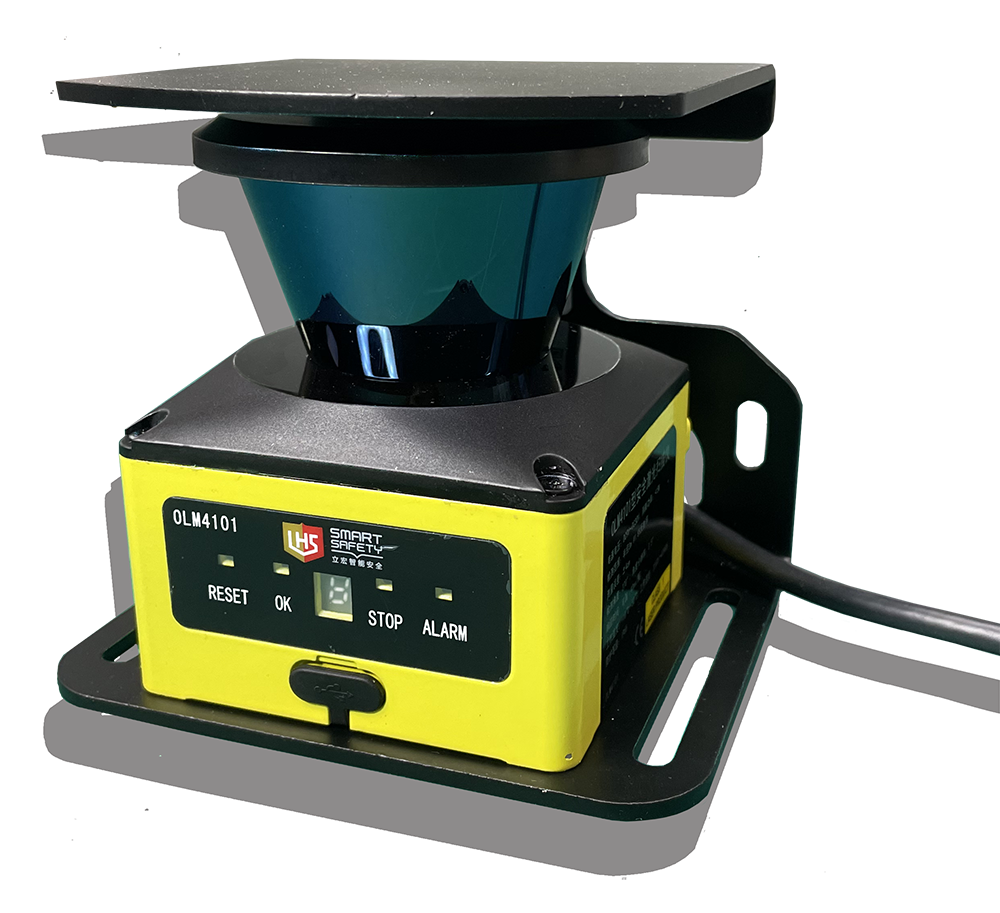

OLM4101-3-270-5M security laser scanner

· OLM4101-3-270-5MOBased on the principle of pulsed laser ranging.

· Angle is realized by rotating scanning.276°

· The protection distance is 3 meters adjustable.

· Support user customization16×3Groups of sectors with different shapes for safe output.

· Can provide functional safety output

▊	Product introduction

reserve

· Provide real-time hazardous area detection

· Irregular safety detection and protection up to 3m long.

· Obstacle avoidance can be set according to the site environment.

· Used in stop equipment that can safely output.

Early warning area

· The early warning area can be set to avoid obstacles according to the site environment.

· Used in stop equipment that can safely output.

▊	specifications and models

product name	model	Detection radius	Scanning angle	output form
Safety laser scanner	OLM4101-3-270-5M series	4m@1.8% reflectivity	276°	PNP
Vertical floor support	OLM4101-ZJ40	Protect the bracket horizontally and implement the installation bracket.
Power cord	5M gift
Programming line	gift
explain

Laser scanner main body


Floor mounting bracket

Power cord

Programming line

▊	Typical wiring diagram

▊	technical parameter

Safety data
security level/phase	Type 3（IEC61496IEC61496） PLd（ISO13849ISO13849
Mean time to failure without danger Mttfd（year）	22.6
Hourly failure probability PFHD(1/h）	4.89E-07
Optical characteristics
Laser light source	Wavelength 905n, a kind of laser products.
Detection radius	30m@10%reflectivity
Scanning angle range	276°/360°	Angular resolution	The default value is 0.12°@25Hz, which can be configured (minimum value is 0.06 @10Hz).
Refresh frequency	25Hz（Default, configurable）
measurement error	≤25mm（typical value）	repeatability	±6mm@1sigma
Electrical/mechanical parameters
operating voltage	DC11V~DC28V
Power-on start time	8s（typical value）
power consumption	8W（typical value）
output form	PNP output+Ethernet output
outline dimension	100×100×115mm

Environmental characteristics
ambient humidity	Working: -30℃~50℃ Storage: -40℃~70℃
ambient humidity	Work: 35%RH~85%RH Storage: 35%RH~95%RH.
Anti-light interference	80000Lux
resist the impact	Acceleration 10g；; Pulse duration: 16ms；; Collision times: three axes, each axis is 1000 10 times.
Vibration resistance	Frequency 10 Hz ~ 55 Hz; Amplitude: 0.35±0.05mm；; Scanning times: three axes, 20 times per axis.
the protection grades	IP67
Electromagnetic compatibility（EMC）	EMI	EN61326-1：2013EN55011：2009+A1：2010
	EMS	EN61326-1：2013EN61000-4-2：2009EN61000-4-3：2006+A1：2008+A2：2010 EN61000-4-4：2004+A1：2010EN61000-4-6：2009EN61000-4-8：2010 EN61000-4-11：2004
